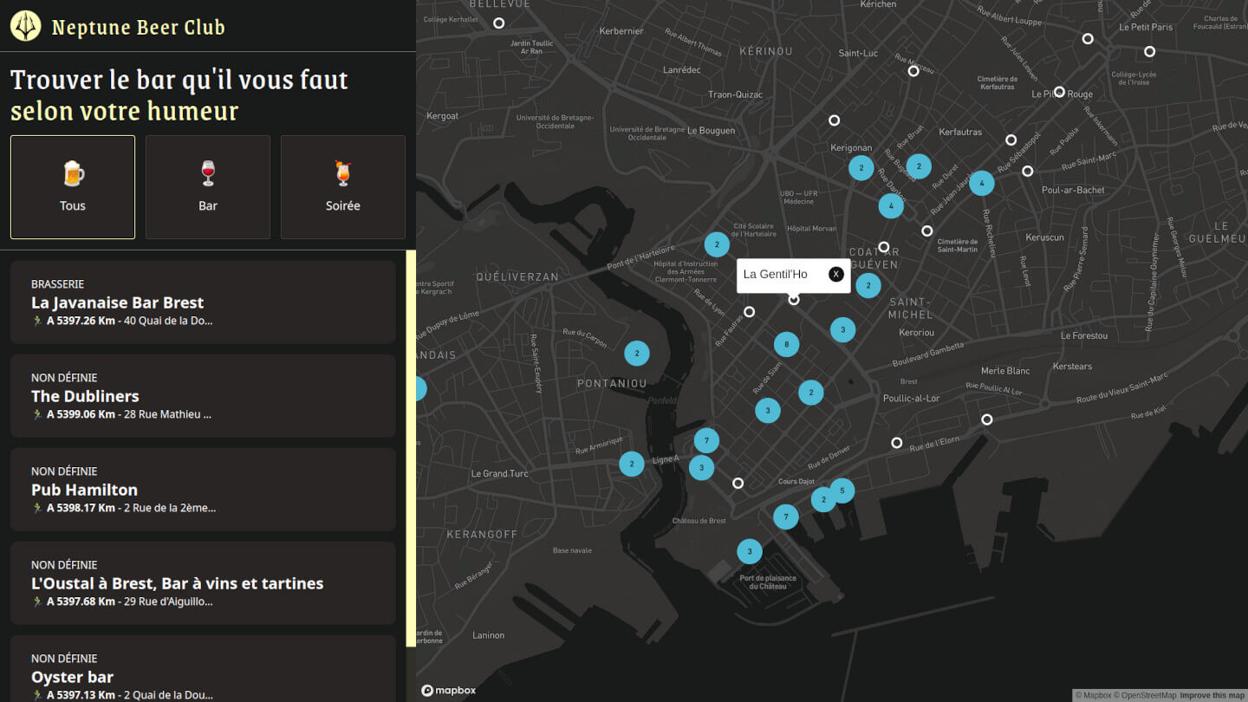

Neptune Beer Club

The problem

• See a map of Brest with all bars
• See the list of bars
• View details
• Filter bars

The solution

1. Single Page Application (SPA) with the React, Vite and Tailwind library.
2. Configuration: Vite, Vitest, Prettier, EsLint, TypeScript
3. File organization: Screaming architecture with a features/bar folder
4. Deployment: GitHub Actions

Screaming architecture

I tried to implement these features:

• index.js as a public API
• camel-case
• features & colocation

└── src/
	├── assets/
    ├── features/
    │   ├── bars/
    │   │   ├── index.js (public API)
	│   │   ├── api/index.ts
    │   │   ├── bar-map/
    │   │   ├── bar-form/
    │   │   └── bar-list/
    │   │       ├── index.js (public API)
    │   │       ├── bar-item.component.js
    │   │       ├── bar-list.component.js
    │   │       ├── bar-list.context.js
    │   │       ├── bar-list.test.js
    │   │       └── use-bar-list.js
    │   ├── users/ (new features, not yet)
    │   │   ├── index.js
    │   │   ├── login/
    │   │   ├── signup/
    │   │   └── use-auth.js
	│	├── ui/ (common, shared components)
    │   ├── index.js
    │   ├── components/
    │   ├── containers/ : header, footer, navbar, ...
    │   └── layouts/
    └── pages/
        └── home.tsx

Public API (index.js)

export * from './bar-list';
export * from './bar-map';
export * from './bar-filters';
export * from './bar-context';

Home.tsx

• The <BarProvider /> is used to share data retrieved from the API
• The <MapProvider /> is provided by React Map GL to allow actions on the map from other components. You can click a button in that sends a new position of the .

import { Header } from '@containers/Header';
import { BarList, BarMap, BarFilters, BarProvider } from '@features/bar';
import { MapProvider } from 'react-map-gl';

export const Home = () => {
  return (
    <BarProvider>
      <MapProvider>
        <div className="grid grid-cols-[1fr_2fr]">
          <div className="flex h-screen flex-col">
            <Header />
            <BarFilters />
            <BarList />
          </div>
          <div>
            <BarMap />
          </div>
        </div>
      </MapProvider>
    </BarProvider>
  );
};

React Map GL

<Map
  id="barmap"
  initialViewState={{
    longitude: -4.4852,
    latitude: 48.3891,
    zoom: 14,
  }}
  mapStyle="mapbox://styles/mapbox/dark-v9"
  mapboxAccessToken={MAPBOX_TOKEN}
  interactiveLayerIds={[clusterLayer.id as string]}
  ref={mapRef}
  onClick={onClick}
>
  {geojsonData ? (
    <Source
      id="brest-bars"
      type="geojson"
      data={geojsonData}
      cluster={true}
      clusterMaxZoom={14}
      clusterRadius={50}
    >
      <Layer {...clusterLayer} />
      <Layer {...clusterCountLayer} />
      <Layer {...unclusteredPointLayer} />
    </Source>
  ) : null}
  <BarMapMarkers bars={filteredBars} />
</Map>

What I Learned

• Deployment with 2 GitHub Actions: testing and deployment
• Feature-based architecture with public API
• Using the map in React
• Overcome the difficulties of using the GeoJson format

Future Plans

The goal is to develop the “Neptune Beer Club” application, giving a charismatic and legendary identity to bars in Brest.

1. Enhanced User Interaction: Implementing a search feature, providing directions, and enabling location sharing for a more interactive experience.
2. Technical Optimization: Utilizing API Directus for efficient data management, deploying with Docker, and incorporating animations for improved technical aspects.
3. Creative Branding and Promotion: Establishing a unique brand identity, promoting local bars and beers, and adding thematic elements for a creative touch.
4. Innovative Features: Exploring the integration of an AI bot, experimenting with 3D effects, and providing inclusivity information for a modern and innovative application.
5. Diverse User Scenarios: Offering users a choice between traditional (Couple, Brewer/Connoisseur, Friends, Business) and original scenarios involving a dog, a robot, or envisioning the future.
