ArgentBank

This project is the n°13 of the OpenClassrooms Front-End learning path.

The problem

Argent Bank is a new bank that is starting up. She’s trying to break into the industry and needs help setting up her app. It needs a web application that allows customers to log in and manage their accounts and profile.

The solution

• Build a responsive React App
• Add an authentication system with Redux, according to User Stories.
• Document the new endpoints of the API with Swagger

1. Responsive Web App

2. Authentication system

Vertical Architecture

Using Redux ToolKit, I followed some vertical architecture’s principles : a slice per feature.

├── 📂 app
│   ├── apiSlice.js
│   ├── App.jsx
│   └── store.js
├── 📂 features
│   ├── authSlice.js
│   └── userSlice.js
├── 📂 pages
│   ├── 📂 Error404
│   ├── 📂 Home
│   ├── 📂 Layout
│   ├── 📂 Login
│   └── 📂 Profile
└── 📂 styles
    └── *.scss

Private Route

The first step of authentication was to add a private route with React-Router. The idea is to provide a conditional routing system which renders the Profile page if the user is logged or the Login page instead.

const PrivateRoute = ({ element }) => {
  const token = useSelector(selectCurrentToken);
  return token ? element : <Navigate to="/login" replace={true} />;
};

const App = createBrowserRouter([
  {
    path: '/',
    element: <Layout />,
    children: [
      { index: true, element: <Home /> },
      { path: 'login', element: <Login /> },
      { path: 'profile', element: <PrivateRoute element={<Profile />} /> },
      { path: '*', element: <Error404 /> },
    ],
  },
]);

Form Validation

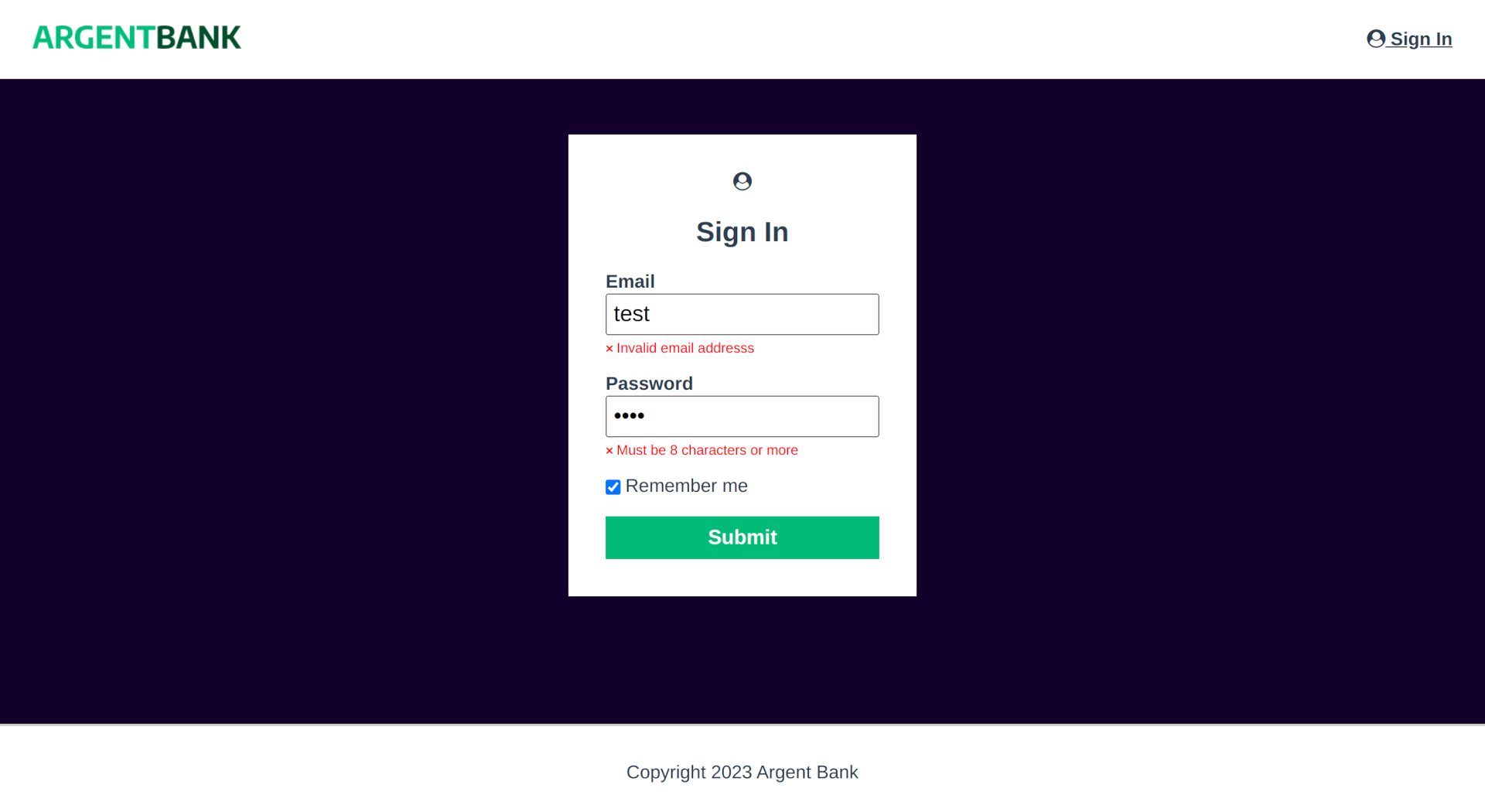

The form validation was handled by Formik and Yup. A visual feedback from Toastify was added to provide a great user experience.

const validationSchema = Yup.object({
  email: Yup.string().email('Invalid email addresss').required('Required'),
  password: Yup.string()
    .min(8, 'Must be 8 characters or more')
    .max(20, 'Must be 20 characters or less')
    .required('Required'),
  rememberMe: Yup.boolean().default(false),
});

const initialValues = { email: '', password: '', rememberMe: false };

return (
  <Formik
    initialValues={initialValues}
    validationSchema={validationSchema}
    onSubmit={handleSubmit}
  >
    <Form>
      <TextInput label="Email" name="email" type="email" />
      <TextInput label="Password" name="password" type="password" />
      <Checkbox name="rememberMe">Remember me</Checkbox>
      <button className={styles.button} type="submit">
        Submit
      </button>
    </Form>
  </Formik>
);

RTK

When the form was successfully submitted, RTK stores a token from the server and use it in the Header of every API requests.

export const api = createApi({
  reducerPath: 'api',
  baseQuery: fetchBaseQuery({
    baseUrl: 'http://localhost:3001/api/v1',
    prepareHeaders: (headers, { getState }) => {
      const token = getState().auth.token || localStorage.getItem('token');
      if (!headers.has('Authorization') && token) {
        headers.set('Authorization', `Bearer ${token}`);
      }
      return headers;
    },
  }),
});

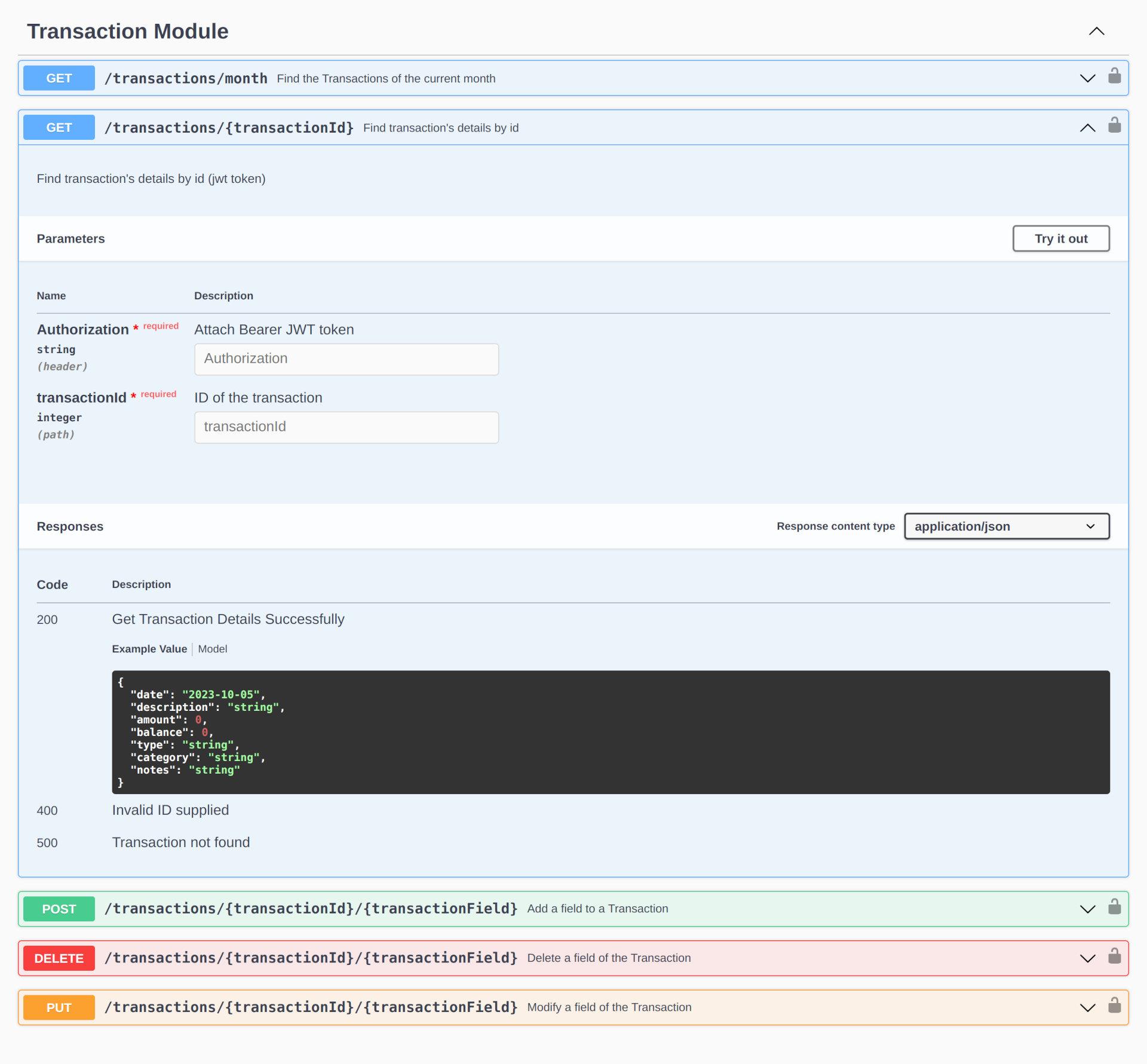

3. Documentation of the API

We used Swagger to add API endpoints in the documentation

/transactions/{transactionId}:
  get:
    security:
      - Bearer: []
    tags:
      - Transaction Module
    summary: Find transaction's details by id
    description: Find transaction's details by id (jwt token)
    parameters:
      - in: header
        name: Authorization
        description: Attach Bearer JWT token
        required: true
        type: string

What I Learned

• Authenticate to an API
• Model an API
• Interact with an API
• Implement a state manager in a React application

👉 I’ve written also two articles on LinkedIn and Github/gists about RTK:

• Redux Toolkit Primer #2 - Cart 🛒
• RTK Query Primer
